A large medical device manufacturer wanted to improve the accuracy of their labeling operation. They were manually preprinting labels for each work order using stand-alone labeling software. This was prone to keyboarding errors, leftover labels in the print queue and other manual handling issues.

We wrote a custom program to run in an Intermec PX4 printer, which gets input from USB and serial scanners and controls two slave printers connected to one of the serial ports on the PX4 printer.

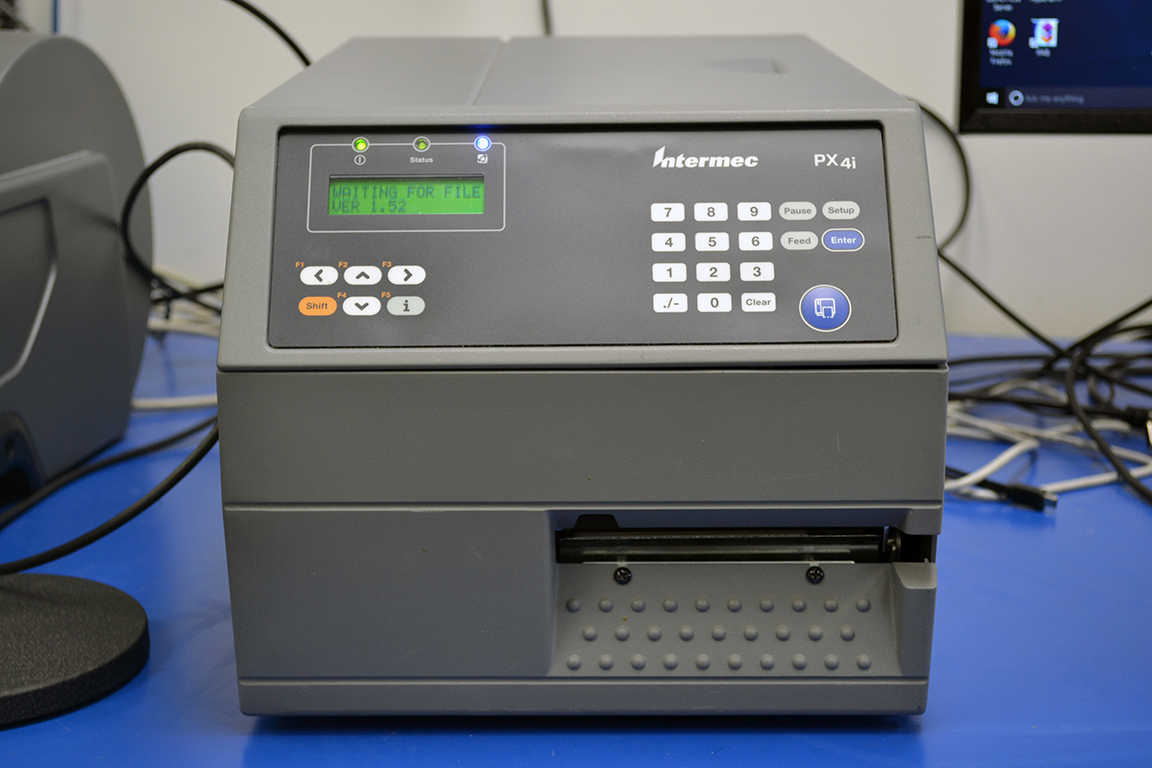

A team leader uses an Intermec CK3 to verify the work order data, then scans a barcode on the front of the printer. A work order file is then tranferred from the host system to the PX4 via FTP. The PX4 merges this data with label templates for each label required.

print on demand page 1

The team leader verifies the work order and scans the barcode that identifies the printer to the host system.

print on demand page 2

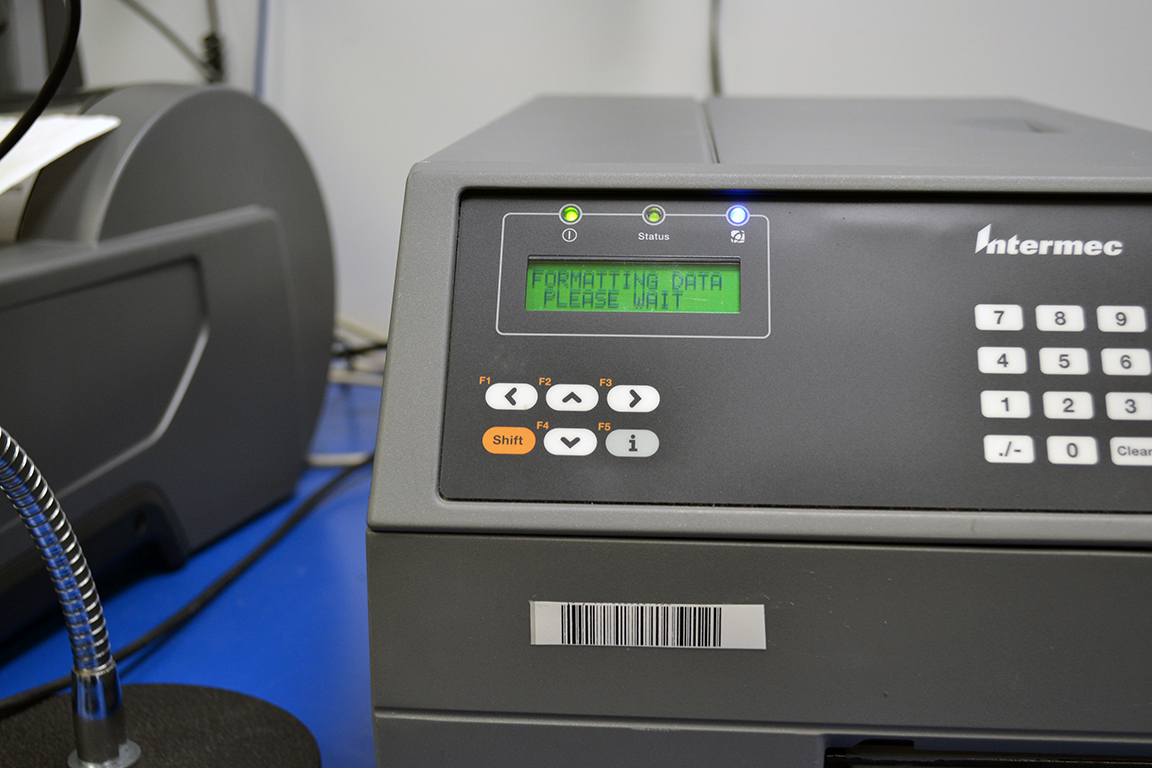

When the work order file has been tranferred, the PX4 program begins to merge the data with the label templates and transfers any image files to the slave printers.

print on demand page 3

The label templates are completed and the image files are tranferred.

print on demand page 4

The team leader is asked to verify the work order.

print on demand page 5

The program asks the team leader to scan a barcode from the package.

print on demand page 6

The team leader scans a barcode from the package and the PX4 program cross checks it against the workorder data. If the barcode matches, one sample label of each type is printed for QC.

print on demand page 7

Sample box label.

print on demand page 8

Sample patient label.

print on demand page 9

Sample trace label.

print on demand page 10

Labels are checked by Quality Control.

print on demand page 11

Now the system is in production mode. A box label is printed each time the correct barcode is printed. Up to three scanners and printers are supported.

print on demand page 12

If the product has more than one item in a box, the user is prompted to scan each device before a label is printed.

print on demand page 13

When the work order is complete, the user stops the program by pressing a key on the printer's keyboard.

print on demand page 14

One additional sample label is printed and summary labels are printed for each label type. This summary label saves them a lot of reconcilliation time.


Label errors and the subsequent cost of correcting these errors were greatly reduced.
